Powder Coating Booth
A Powder Coating Booth is a purpose‑built enclosure designed to safely and efficiently apply dry powder coatings to metal parts and components. Within this controlled environment,electrostatically charged powder particles are sprayed onto grounded workpieces, forming a uniform layer that is subsequently cured under heat to produce a durable, high‑quality finish. Powder coating booths are essential equipment across a wide range of industries, including automotive,metal furniture, home appliances, architectural aluminum, and general metal fabrication.
Applications in the Powder Coating Industry
Powder coating booths are utilised wherever metal surfaces require a tough, attractive, and corrosion‑resistant finish. Typical application areas include:
Automotive Components – wheels, chassis parts, bumpers, suspension components, and engine brackets.
Metal Furniture – indoor and outdoor chairs, tables, bed frames,shelving, and office furniture.
Home Appliances – washing machine bodies, refrigerator panels,microwave housings, and air‑conditioner grilles.
Architectural & Building Materials – aluminum profiles, windowframes, curtain‑wall panels, handrails, and security doors.
Industrial Equipment – electrical enclosures, control panels, machine frames, agricultural tools, and pipe fittings.
General Metal Fabrication – brackets, welded assemblies,sports equipment, and hardware tools.
Key Advantages of Powder Coating Booths
1. Exceptional Finish Quality & Durability
The enclosed booth environment, combined with precise airflow control and efficient filtration, ensures that the powder is applied evenly and consistently. The resulting cured film offers outstanding resistance to chipping, scratching, fading, and corrosion—significantly outperforming conventional liquid paint in terms of long‑term durability. Powder coating also provides a thicker, more uniform film build (typically 2‑6 mils) compared to traditional wet paint.
2. High Material Utilisation & Cost Savings
Modern powder coating booths are equipped with advanced recovery systems—either cartridge‑filter or cyclone‑based—that capture overspray powder and return it to the feed system. Recovery efficiencies can reach 95 % to over 99 %, dramatically reducing raw material waste. By reusing powder, manufacturers can achieve significant cost savings on coating materials, often reducing consumption by 15 % to 30 %. This high transfer efficiency also means less powder needs to be purchased and disposed of over time.
3. Environmentally Friendly & VOC‑Free
Unlike liquid paints that contain solvents and release volatile organic compounds (VOCs), powder coatings are 100 % solids. A properly designed powder booth captures virtually all overspray, prevents dust spillover into the workshop, and returns clean air to the facility.This near‑zero VOC emission profile helps manufacturers comply with stringent environmental regulations and provides a safer, healthier workplace for operators.
4. Fast Colour Change & Operational Flexibility
Many powder booths are designed with quick colour‑change capabilities. Smooth interior walls,easy‑access panels, and automated cleaning systems allow operators to switch between colours in as little as 3 to 15 minutes. This flexibility is particularly valuable for job‑shop coaters who handle multiple colours daily and need to minimise downtime between batches.
5. Enhanced Operator Safety
Powder coating booths are engineered to meet rigorous international safety standards (e.g., EN 12981, NFPA, OSHA). Features such as proper grounding, explosion‑proof lighting,emergency stop buttons, fire suppression options, and continuous airflow monitoring ensure that the concentration of airborne powder remains well below the lower explosive limit.This creates a safe working environment while preventing the accumulation of combustible dust.
6. Easy Maintenance & Long Service Life
The robust construction—typically galvanised or powder‑coated steel with smooth internal surfaces—resists powder adhesion and makes routine cleaning quick and simple. Cartridge filters are often cleaned automatically by reverse‑pulse jets, extending filter life and maintaining consistent airflow. Easy‑access doors and removable collection hoppers further simplify daily maintenance, reducing overall operating costs and maximising uptime.
Three Popular Powder Coating Booth Sizes for International Trade
Based on market demand and typical part dimensions in global export markets, the following three sizes represent the most commonly ordered configurations. They cover small‑batch manual work, medium‑sized parts, and larger industrial components. The table below provides a direct comparison of the key specifications.
| Model | Operating Dims (W×D×H) | Overall Dims (W×D×H) | Weight | Power Supply |
|---|---|---|---|---|
| Compact Batch Booth (Lab & Small Parts) | 1,500 × 1,000 × 1,700 mm | 1,600 × 2,000 × 2,250 mm | 400 – 500 kg | 220 V / 380 V 3‑phase, 50/60 Hz |
| Medium Walk‑in Booth (Job Shop Workhorse) | 2,300 × 1,500 × 1,500 mm | 2,550 × 2,100 × 2,240 mm | 550 – 600 kg | 220 V / 380 V 3‑phase, 50/60 Hz |
| Large Walk‑in Chamber (Bulky & Heavy Parts) | 3,900 × 2,400 × 2,400 mm | 4,000 × 2,700 × 3,350 mm | ~1,500 kg | 220 V / 380 V 3‑phase, 50/60 Hz |
1. Compact Batch Booth – Ideal for Small Parts & Laboratories
Operating dimensions (W × D × H): approx. 1,500 mm × 1,000 mm × 1,700 mm
Overall dimensions (W × D × H): approx. 1,600 mm × 2,000 mm × 2,250 mm
Typical weight: 400–500 kg
Power supply: 220 V / 380 V, 3‑phase, 50/60 Hz

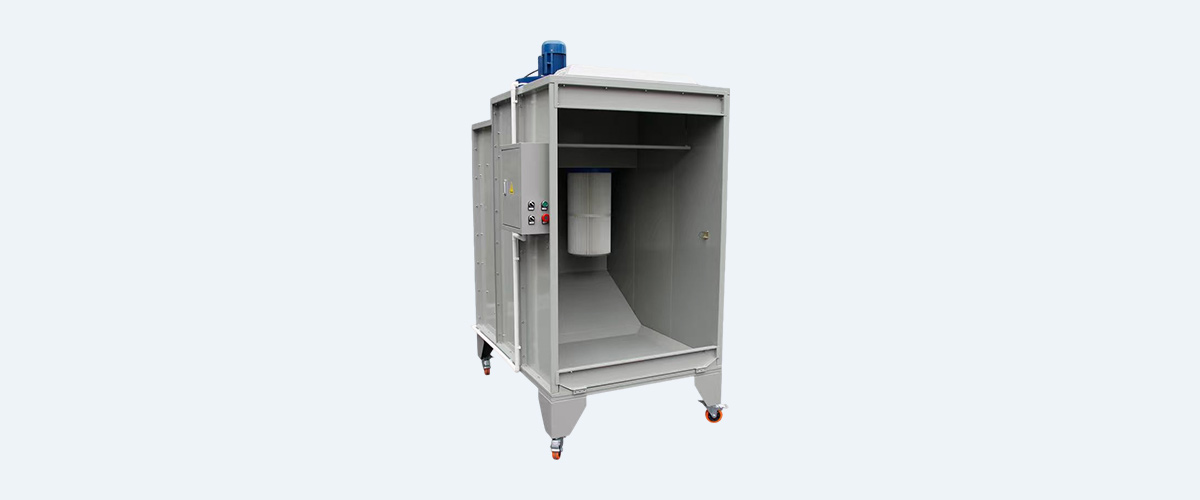

This compact, wheel‑mounted booth is perfect for laboratory sample testing, small‑batch production, and coating of small hardware parts such as brackets, handles, and automotive trim pieces. It offers an excellent entry point for workshops starting with powder coating or needing a dedicated station for colour evaluation and prototyping. Despite its small footprint, it delivers high filtration efficiency and reliable powder containment.
2. Medium Walk‑in Booth – Versatile Workhorse for Job Shops
Operating dimensions (W × D × H): approx. 2,300 mm × 1,500 mm × 1,500 mm
Overall dimensions (W × D × H): approx. 2,550 mm × 2,100 mm × 2,240 mm
Typical weight: 550–600 kg
Power supply: 220 V / 380 V, 3‑phase, 50/60 Hz
This is one of the most popular sizes in the export market. The generous working space accommodates alloy wheels, bicycle frames, steel furniture components, and medium‑sized fabricated parts. Equipped with 4–6 cartridge filters and a user‑friendly PLC control panel, it provides efficient powder recovery and easy day‑to‑day operation. Its balanced dimensions make it suitable for both manual spraying and integration into a simple conveyorised line.
3. Large Walk‑in Chamber – For Bulky & Heavy Parts
Operating dimensions (W × D × H): approx. 3,900 mm × 2,400 mm × 2,400 mm
Overall dimensions (W × D × H): approx. 4,000 mm × 2,700 mm × 3,350 mm
Typical weight: 1,500 kg
Power supply: 220 V / 380 V, 3‑phase, 50/60 Hz
Designed for large or bulky workpieces such as control cabinets, iron castings, agricultural machinery parts, and oversized architectural elements. Operators can work inside the booth, moving around the part to achieve meticulous manual coverage. With 12 or more high‑capacity cartridge filters and powerful exhaust fans, this booth maintains a clean working environment even during heavy coating operations. It is built for durability with a robust powder‑coated steel structure, ensuring a long service life in demanding industrial settings.
Note: All sizes can be customised to suit specific part dimensions and production requirements. Custom racking solutions, additional gun openings, automated reciprocators,cyclone recovery systems, and temperature control options are available upon request.
Looking for a Reliable Powder Coating Booth?
Contact us today to discuss your requirements. We offer OEM and customised solutions for distributors, job‑shop coaters, and industrial manufacturers worldwide.
WhatsApp: +86 139 6595 5948 | Email: mypowdercoater@gmail.com | Web: Contact Form
