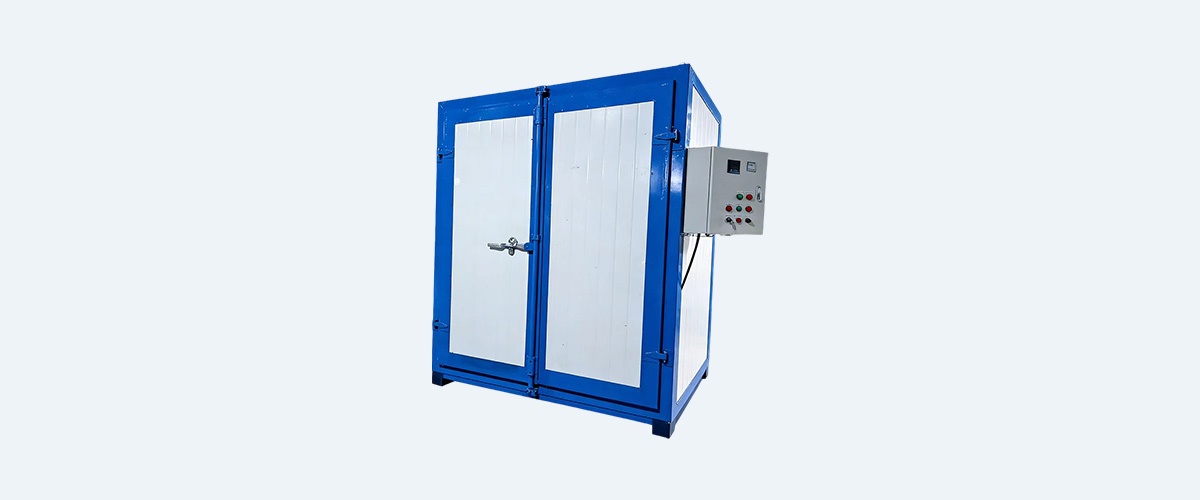

Powder Coating Oven
A Powder Coating Oven, also referred to as a powder curing oven or industrial batch oven, is a critical component in any powder coating line. It provides the controlled, high‑temperature environment required to melt, flow, and cross‑link the electrostatically applied powder into a tough, uniform finish. By maintaining precise temperature uniformity and adequate airflow, the oven ensures that every part—whether small brackets or large fabrications—achieves a durable, high‑quality coating. Powder coating ovens are widely used in automotive, metal furniture, home appliances, architectural aluminum, and general metal fabrication industries.
Applications in the Powder Coating Industry
Powder coating ovens are indispensable wherever a permanently bonded, corrosion‑resistant finish is required. Typical application sectors include:
Automotive & Transportation – wheels, chassis components, engine parts, motorcycle frames, and aftermarket accessories.
Metal Furniture – office chairs, desks, shelving units, outdoor benches, and hospital furniture.
Home Appliances – refrigerator doors, washing machine tops, oven cavities, and air‑conditioner covers.
Architectural & Construction – aluminum curtain‑wall profiles, window frames, balustrades, and cladding panels.
Industrial & Agricultural Equipment – electrical enclosures, control cabinets, tractor parts, and heavy‑duty toolboxes.
General Job Coating – fabricated brackets, gym equipment, wire goods, and consumer metal products.
Key Advantages of Powder Coating Ovens
1. Superior Temperature Uniformity & Consistent Curing
Advanced air‑circulation designs, often employing a combination of horizontal and vertical airflow, guarantee temperature uniformity typically within ±3 °C to ±5 °C across the entire working volume. This consistency eliminates under‑cured or over‑baked spots, ensuring that every part obtains the full mechanical properties, colour stability, and gloss level specified by the powder manufacturer.
2. Energy‑Efficient Insulation & Fast Heat‑Up
High‑density rock wool or ceramic fibre insulation (typically 100 mm to 150 mm thick) minimises heat loss and keeps the outer skin temperature safe to touch. Combined with optimised heating elements (electric, gas, or thermal oil) and precisely tuned PID controllers, the oven reaches the curing setpoint quickly and maintains it with minimal energy consumption, reducing operating costs throughout its lifetime.
3. Optimised Airflow for Quality Finish
Properly positioned supply and return ducts create a balanced airflow pattern that prevents powder blow‑off while still delivering the necessary heat transfer. Variable‑speed circulation fans allow operators to adjust air velocity for lightweight parts or delicate assemblies, safeguarding coating integrity and reducing rework.
4. Robust Construction & Long Service Life
Ovens are built with heavy‑gauge steel frames and double‑walled panels, often finished with a corrosion‑resistant powder coating on the exterior. The interior can be supplied in aluminised steel or stainless steel for high‑temperature or clean‑room applications. This rugged construction withstands continuous industrial use, ensuring reliable performance for 15 years or more with proper maintenance.
5. Safety & Compliance
Standard safety features include over‑temperature protection, explosion relief panels, emergency stop circuits, and audible/visual alarms. The control system can integrate data logging and remote monitoring, helping facilities comply with international safety standards such as EN 1539, NFPA 86, and OSHA requirements for industrial ovens.
6. Flexible Configuration & Easy Integration
Whether you need a standalone batch oven, a walk‑in curing room, or a continuous conveyor oven, the design can be tailored to your production flow. Options such as double‑door pass‑through configurations, product racks, and automated loading systems make integration into an existing powder coating line straightforward, maximising throughput and productivity.
Three Popular Powder Coating Oven Sizes for International Trade
Drawing from export‑volume data and feedback from coaters worldwide, the following three models represent the most frequently ordered electric batch ovens. They cover laboratory and small‑batch work, medium‑sized production, and large‑part curing. Use the comparison table below to identify the model that best fits your typical part dimensions.
| Model | Internal Dims (W×D×H) | External Dims (W×D×H) | Max Temp | Heating Power | Approx. Weight |
|---|---|---|---|---|---|
| Compact Lab Oven (Lab & Small Parts) | 800 × 800 × 1,000 mm | 1,200 × 1,100 × 1,600 mm | 200 °C / 250 °C | 9 kW (380 V) | ~200 kg |
| Medium Industrial Batch Oven (Job Shop Standard) | 1,500 × 1,500 × 1,800 mm | 1,900 × 1,800 × 2,300 mm | 220 °C / 250 °C | 24 kW (380 V) | ~450 kg |
| Large Walk‑in Curing Oven (Bulky & Heavy Parts) | 3,000 × 2,500 × 2,500 mm | 3,400 × 2,800 × 3,000 mm | 220 °C | 48 kW (380 V) | ~1,200 kg |
1. Compact Lab Oven – Ideal for Sampling & Small Batches
This benchtop‑sized or floor‑standing compact oven provides accurate temperature control for powder sample testing, colour evaluation, and small‑batch production of components like brackets, handles, or electronic enclosures. Equipped with a digital PID controller, over‑temperature alarm, and a stainless‑steel interior, it is an economic and reliable choice for R&D centres and startup coating shops. Despite its small footprint, it delivers uniform heat distribution and rapid heat‑up, typically reaching 200 °C in under 20 minutes.
2. Medium Industrial Batch Oven – The Export Bestseller
With a generous internal volume of over 4 m³, this model is the most popular choice among international buyers. It comfortably cures alloy wheels, bicycle frames, steel furniture components, and medium‑sized fabricated parts. Features include a heavy‑duty cart system for easy loading, bidirectional horizontal airflow, 100 mm rock‑wool insulation, and a user‑friendly HMI touch screen. The balanced dimensions make it suitable for both standalone manual operations and integration into a semi‑automatic powder coating line.
3. Large Walk‑in Curing Oven – For Oversized & Heavy Parts
Designed for bulky items such as large electrical cabinets, construction machinery parts, and architectural assemblies, this walk‑in oven allows operators to roll in fully loaded racks or even drive a forklift inside. Dual‑zone heating and powerful recirculation fans (typically 2 × 3 kW fan motors) maintain temperature uniformity across the vast chamber. With robust structural I‑beam reinforcements and a galvanised or aluminised interior, it withstands demanding industrial cycles and provides decades of reliable service.
Note: All sizes can be customised to your specific internal dimensions,temperature requirements (up to 300 °C), heating source (electric, gas, diesel, or thermal oil), and door configuration (single, double‑door pass‑through, or vertical lift). Additional options such as product rotation systems, automated loading, and data‑logging are available upon request.
