Electrostatic Powder Coating Paint Gun systems have become essential finishing tools across automotive, architectural, aerospace, and general industrial sectors. The global electrostatic spray gun market was valued at approximately 988 million dollars in 2025 and is projected to reach 1.393 billion dollars by 2032, representing a compound annual growth rate of 5.2 percent.
Electrostatic Powder Coating Paint Gun technology operates on the fundamental principle of electrostatic attraction to apply dry powder onto grounded metal surfaces. A Electrostatic Powder Coating Paint Gun uses a high voltage generator, typically ranging between 30 and 100 kilovolts, to impart an electrical charge to powder particles as they exit the spray nozzle. These charged particles are naturally drawn toward the grounded workpiece, creating an even coating layer that wraps around edges and reaches recessed areas. The Electrostatic Powder Coating Paint Guncorona charging method uses a high-voltage electrode at the gun tip to ionize surrounding air and charge particles, working effectively with all powder types including epoxy, polyester, and hybrid formulations. Corona charging technology accounts for approximately 60 percent of the global market share. Some advanced Electrostatic Powder Coating Paint Gun models incorporate pulse power technology specifically designed to overcome Faraday cage effects, allowing operators to achieve superior coverage in tight inside corners and complex part geometries. After electrostatic powder application, the coated part must be cured at temperatures between 350 and 400 degrees Fahrenheit, during which powder particles melt, flow together, and chemically cross-link into a hard, durable finish that is approximately ten times more durable than conventional liquid coatings. The global electrostatic spray gun production reached 520,000 units in 2025, with an average selling price of 1,900 dollars per unit.
Electrostatic Powder Coating Paint Gun equipment is manufactured using two distinct charging technologies, each offering specific advantages for different coating applications and workpiece configurations. Corona charging Electrostatic Powder Coating Paint Gun models use a high-voltage electrode at the gun tip to ionize air and charge particles, representing the most common and versatile option available on the market. Corona Electrostatic Powder Coating Paint Gunequipment works effectively with all powder types including epoxy, polyester, and hybrid formulations, making it the preferred choice for general coating operations. Tribo charging Electrostatic Powder Coating Paint Gun systems rely on friction between powder particles and PTFE-lined channels inside the gun to generate electrostatic charge, which eliminates the Faraday cage effect and provides superior coverage in recessed areas and complex part geometries. The Faraday cage effect occurs when the electrostatic field created by ions generated in a Electrostatic Powder Coating Paint Gun repels approaching powder particles from hard-to-reach corners, a challenge exacerbated by the insulative effect of powder already deposited on the part. Tribo Electrostatic Powder Coating Paint Gun technology creates positively charged powder particles by frictional charging, conveying powder through a specially fabricated spray gun with a PTFE lining that robs the powder particles of their electrons, resulting in a net-positive charge on the particle. For most workshops and manufacturing facilities, a corona charging Electrostatic Powder Coating Paint Gun offers the best combination of versatility, speed, and ease of use across diverse workpiece types and powder formulations. The choice between corona and tribo technology when selecting a Electrostatic Powder Coating Paint Gun ultimately depends on your specific workpiece configurations and the types of powder you plan to use regularly.

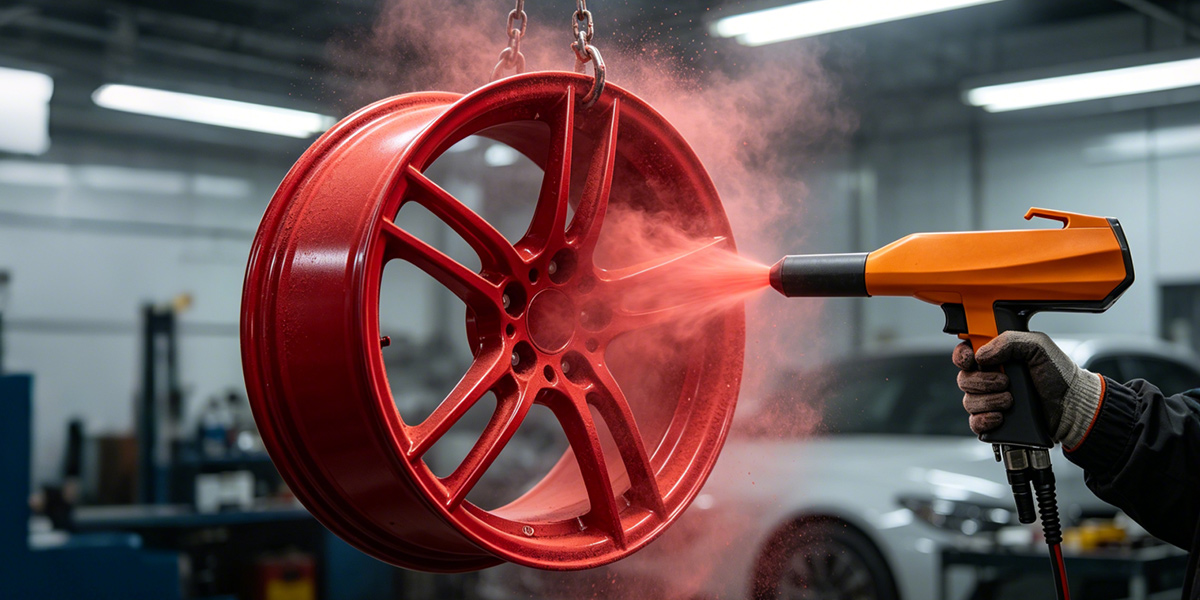

Electrostatic Powder Coating Paint Gun equipment serves a diverse range of coating applications across automotive, aerospace, architectural, and consumer goods sectors. In the automotive industry, the Electrostatic Powder Coating Paint Gun is extensively used for coating wheels, engine components, brake calipers, suspension parts, and chassis elements, providing superior protection against corrosion and enhancing aesthetic appeal. The automotive parts segment accounts for more than 30 percent of Electrostatic Powder Coating Paint Gun market demand. Small workshop owners rely on the Electrostatic Powder Coating Paint Gun for refinishing motorcycle frames, bicycle components, and custom metal fabrication projects. The VEVOR 50KV Electrostatic Powder Coating Paint Gun is suitable for various applications including metals, automotive parts, furniture, construction materials, fences, and pipes, protecting metals from corrosion. For architectural metalwork including railings, gates, structural components, and outdoor furniture, the Electrostatic Powder Coating Paint Gun delivers even coverage and corrosion resistance that traditional liquid paint cannot achieve. Aerospace applications benefit from the Electrostatic Powder Coating Paint Gun as it provides enhanced protection against oxidation and wear, essential for aircraft components that must meet stringent safety and performance standards. The VEVOR 100KV high-power Electrostatic Powder Coating Paint Gun model with a 50L powder hopper and 450 gram per minute spraying speed is designed for large applications such as buildings, ships, and factory equipment, making it suitable for high-intensity production lines and batch production.
Electrostatic Powder Coating Paint Gun selection requires evaluating several key parameters against your specific project scale, frequency, and budget constraints. The KV80 and KV100 Electrostatic Powder Coating Paint Gun models from PowderCoatPro deliver 30 to 80 percent more electrostatic charging power than competitor entry-level guns, providing flawless even coats with less powder waste. The KV80 Electrostatic Powder Coating Paint Gun features twin grounding systems for part and earth connections, offering 4 times faster coating speed than entry-level units. The Redline EZ50 Electrostatic Powder Coating Paint Gun offers 50KV output with on-gun kV adjustment intuitive for beginners, but has limited repairability compared to fully repairable systems. For occasional DIY users who plan to coat small items like brackets and hand tools, a basic Electrostatic Powder Coating Paint Gun priced around 150 to 300 dollars provides sufficient electrostatic capability for most home applications. For professionals requiring quick color changes, the PowderCoatPro KV100 Electrostatic Powder Coating Paint Gun allows color changes in under one minute and features a universal 17 oz powder cup with standard replacement cup pricing available from any supplier. When selecting an Electrostatic Powder Coating Paint Gun, consider the electrostatic voltage output range, as models offering 80 to 100KV capability provide better transfer efficiency and improved coverage on complex shapes. Always check whether the Electrostatic Powder Coating Paint Gun includes comprehensive safety certifications, available replacement parts, and manufacturer technical support. Reading user reviews from other operators in similar applications can provide valuable real-world insight into how an Electrostatic Powder Coating Paint Gun performs under actual working conditions.
Electrostatic Powder Coating Paint Gun installation requires careful attention to workspace configuration and safety considerations before first operation. The most critical aspect of Electrostatic Powder Coating Paint Gun setup is proper grounding, as all electrically conductive objects in the spraying area must be adequately grounded to ensure both operator safety and proper powder adhesion. OSHA regulations under 29 CFR 1910.107 require that the handle of the Electrostatic Powder Coating Paint Gun be electrically connected to ground by a metallic connection, constructed so that the operator in normal operating position maintains intimate electrical contact with the grounded handle. For optimal results, drive an eight-foot copper ground rod into the earth near the coating area and connect it to the gun controller ground lug using 12 to 18 gauge copper wire. The Electrostatic Powder Coating Paint Gun system typically requires connection to a compressed air source with feed air pressure set at 5 to 10 pounds per square inch, and using a moisture trap is strongly recommended to ensure dry, clean air for consistent coating quality. The recommended spraying distance for most Electrostatic Powder Coating Paint Gunequipment ranges from 6 to 10 inches between the gun tip and the target surface, with smooth overlapping strokes applied during coating passes. The recommended electrostatic voltage for optimal performance is between 50 and 70KV for most powder coatings. The Electrostatic Powder Coating Paint Gun workspace should be well-lit and well-ventilated, with adequate clearance around the curing area. Areas used for powder coating must be protected by an approved automatic fire-extinguishing system complying with applicable codes. Powder dust is flammable when floating in the air, requiring users to ventilate the area well and verify there are no flames or ignition sources nearby.
Electrostatic Powder Coating Paint Gun operation demands strict adherence to safety protocols to prevent fire hazards, electrical shock, and personal injury in any coating environment. Poor grounding is the cause of approximately 40 percent of powder coating ignition incidents according to NFPA 33. OSHA has cited multiple facilities for violations related to Electrostatic Powder Coating Paint Gun grounding requirements, including a 2021 citation where the employer did not ensure the handle of an electrostatic spray gun was electrically connected to ground by a metallic connection, exposing employees to fires and explosion hazards. Another violation cited a powder coater exposed to potential static electricity hazards while operating a hand held manual powder coating gun where personal protective equipment including static dissipative footwear, grounding ankle straps, or wrist bonding straps were not used to assure operator grounding. When operating an Electrostatic Powder Coating Paint Gun, no open flames are permitted in the electrostatic powder coating area, and fire extinguishing equipment must be readily available within the coating room. Objects being coated with an Electrostatic Powder Coating Paint Gun must be maintained in electrical contact with conveyor or support systems to ensure proper grounding throughout the coating process. Operators should wear appropriate dust masks and carefully check seals to prevent inhaling powder particles. The coating room must remain free from any ignition sources, smoking, and open flames at all times. During equipment maintenance, operators must disconnect the Electrostatic Powder Coating Paint Gun main power supply and strictly prohibit any energized work on internal components. Powder coating dust represents a high explosion risk, with an average of 28 dust explosions per year in the United States causing 25 injuries and 1 to 6 fatalities annually.
Electrostatic Powder Coating Paint Gun orange peel defects appear as a dimpled, textured surface resembling citrus skin, often caused by improper application techniques. Start by examining the spray parameters on your Electrostatic Powder Coating Paint Gun as too high air pressure over 0.5MPa blasts powder particles too hard onto the metal, stopping them from melting and flowing evenly during curing. Fix orange peel by refining your spray technique and adjusting your Electrostatic Powder Coating Paint Gun settings to keep electrostatic voltage between 60 and 90KV, air pressure at 0.3 to 0.4MPa, and hold the gun 18 to 22 centimeters from the part with steady slow sweeping motions. Heavy film thickness application is the most common cause of orange peel, so reduce the powder flow rate on your Electrostatic Powder Coating Paint Gun and apply two or three thin coating layers rather than one thick coat. Fast curing oven ramp-up can also cause orange peel as the powder skin forms before it can level out naturally. Add a short preheat stage of 10 minutes at 120 degrees Celsius to let the powder soften gradually before hitting full cure temperature. Poorly mixed reclaimed powder mixed with fresh stock often has uneven particle sizes that ruin flow and leveling properties, so limit reclaimed material to 20 percent of any batch for critical finishes. Choose powder formulas with proven flow additives for high-gloss or ultra-smooth projects, which cuts orange peel risk by nearly half from the start. Clean your Electrostatic Powder Coating Paint Gun nozzles and powder hoses daily to remove built-up fine particles that disrupt even spraying, and check oven temperature with a separate thermometer as built-in oven thermostats often read inaccurately.
Electrostatic Powder Coating Paint Gun pinhole defects are small holes that penetrate through the coating to the substrate, allowing moisture to seep under the finish and cause rust and blistering. These tiny voids in your Electrostatic Powder Coating Paint Gun finish are almost always linked to trapped moisture, gas, or hidden contamination in the substrate. Outgassing from porous materials such as cast iron, cheap recycled steel, or unprimed aluminum holds tiny air pockets and moisture that, when heated in the oven, push through the coating before it hardens fully. To eliminate pinholes from your Electrostatic Powder Coating Paint Gun, preheat the substrate at approximately 400 degrees Fahrenheit for 30 minutes before coating to outgas any contaminants trapped in the metal. Remove moisture from compressed air lines with proper filtration, as water droplets in the air supply will create pinholes in the finished coating. Ensure the powder in your Electrostatic Powder Coating Paint Gun hopper is properly fluidized without clumps, as poorly fluidized powder introduces air pockets into the spray stream. Cure the coating at a temperature in the lower end of the manufacturer cure curve to reduce outgassing pressure on porous substrates. Proper surface cleaning using acetone or paint thinner before coating with your Electrostatic Powder Coating Paint Gun removes oils and contaminants that would otherwise vaporize during curing. Avoid touching cleaned surfaces with bare hands between preparation and coating, as skin oils are a common source of pinhole contamination. For cast metal parts and engine components, always preheat before coating and allow the part to cool to handling temperature before applying powder with your Electrostatic Powder Coating Paint Gun.
Electrostatic Powder Coating Paint Gun grounding represents the single most important safety and performance factor in any powder coating operation. The Electrostatic Powder Coating Paint Gunrelies on a complete electrical circuit between the gun and the grounded workpiece, so poor grounding is the root cause of more powder coating problems than any other single factor. OSHA specifically requires that the handle of the Electrostatic Powder Coating Paint Gun be electrically connected to ground by a metallic connection, constructed so that the operator in normal operating position maintains intimate electrical contact with the grounded handle. For proper Electrostatic Powder Coating Paint Gun grounding, drive an 8-foot copper ground rod into the earth near the coating area and connect it to the gun controller ground lug using 12 to 18 gauge copper wire. Metal parts being coated must hang on clean bare hooks with no paint blocking the electrical contact between the part and the hanger. The coating booth and moving conveyor line must be wired directly to the building ground system. If your Electrostatic Powder Coating Paint Gunpowder fails to stick to the workpiece at all, check the ground connection first as incomplete circuits prevent proper electrostatic attraction. Test the grounding connection of your Electrostatic Powder Coating Paint Gun regularly using a multimeter to verify that electricity can flow safely to earth. The twin grounding system on the PowderCoatPro KV80 and KV100 Electrostatic Powder Coating Paint Gun models provides separate grounding paths for both the part and earth connections, offering more reliable electrical circuits than single ground cable designs. Any electrically conductive object within 5 meters of the Electrostatic Powder Coating Paint Gun spray area must be properly grounded to prevent static spark ignition of combustible powder dust.
Setting up an efficient workspace for your Electrostatic Powder Coating Paint Gun involves creating dedicated areas for preparation, application, and curing operations that work together as an integrated home or shop system. The preparation area for your Electrostatic Powder Coating Paint Gun requires good ventilation for chemical cleaning agents plus access to abrasive tools, wire brushes, and cleaning solvents for thorough surface treatment. Keep a supply of clean lint-free rags and acetone or mineral spirits for final surface cleaning before coating with your Electrostatic Powder Coating Paint Gun, as any contamination will affect finish quality. The application area should include a stable work surface or hanging rack where you can suspend workpieces during coating using your Electrostatic Powder Coating Paint Gun, with proper grounding connections for each hanging point. Since powder coating with an Electrostatic Powder Coating Paint Gun produces overspray consisting of dry powder, contain this by placing cardboard or plastic sheeting behind the coating area to catch excess powder that can be reused if kept clean. Good lighting is essential for monitoring coating coverage and thickness when operating your Electrostatic Powder Coating Paint Gun, so install bright LED or fluorescent lights that illuminate the workpiece without creating shadows that hide thin spots. The curing area requires an electric oven dedicated to powder coating when using any Electrostatic Powder Coating Paint Gun, never use an oven that prepares food for human consumption as mildly toxic fumes are given off by the powder during curing. A standard toaster oven works well for small parts up to approximately 12 inches in size, while a conventional kitchen oven can accommodate larger pieces when using an Electrostatic Powder Coating Paint Gun, provided the oven is dedicated to coating use. Position your Electrostatic Powder Coating Paint Gun work area away from flammable materials and ensure adequate clearance around the curing oven for heat dissipation and operator safety. Install a fire extinguisher rated for electrical and chemical fires within easy reach of the coating area and ensure all operators know its location. The Electrostatic Powder Coating Paint Gun itself requires storage space where it remains protected from dust and physical damage, with a dedicated shelf or cabinet near the work area keeping the gun accessible while protecting it from contamination. For efficient operation, organize your powder inventory by color and type, storing containers in sealed bags with desiccant to prevent moisture absorption that would compromise your Electrostatic Powder Coating Paint Gun application quality. Clean the floor after each coating session with a vacuum safe for combustible dust, as powder dust accumulation on horizontal surfaces presents a fire and explosion hazard.
Maintaining your Electrostatic Powder Coating Paint Gun properly directly impacts coating quality and equipment lifespan, requiring systematic cleaning after every single use. Clean the Electrostatic Powder Coating Paint Gun thoroughly after each coating session, focusing especially on the powder feeding components, nozzle, and electrostatic electrode where powder residue accumulates most quickly. Use compressed air free of oil and water to blow powder residue from internal passages of the Electrostatic Powder Coating Paint Gun, or manually wipe accessible areas with a clean dry cloth. Never use liquid cleaners or solvents inside the Electrostatic Powder Coating Paint Gun as these can damage electrostatic components and leave residues that contaminate future coating projects. The nozzle of your Electrostatic Powder Coating Paint Gunrequires particular attention, as powder buildup here causes uneven spray patterns and poor coverage across coated parts. Remove the nozzle and inspect it for clogs, wiping away any accumulated powder with a soft brush to maintain optimal spray characteristics recommended by your Electrostatic Powder Coating Paint Gun manufacturer. The electrode tip on the Electrostatic Powder Coating Paint Gun must remain clean and free of powder crust to maintain proper electrostatic charge generation, as contaminated electrodes reduce transfer efficiency significantly. For Electrostatic Powder Coating Paint Gun powder hopper maintenance, empty any unused powder and store it in sealed containers with desiccant packs to maintain dryness, preventing moisture absorption that causes clumping and poor flow. Clean the hopper interior of your Electrostatic Powder Coating Paint Gun with a dry cloth to prevent cross-contamination between different powder colors. The PowderCoatPro KV80 and KV100 Electrostatic Powder Coating Paint Gun models are designed to be fully repairable with US-based parts and service, making breakdown for cleaning straightforward according to user reviews. Check the electrical cord and ground connections of your Electrostatic Powder Coating Paint Gun periodically for cuts, damage, or loose fittings, and repair or replace immediately if any issues are found. Inspect air lines regularly for leaks and ensure your air source remains dry and clean through proper filtration. Shut off electrostatic power supplies and ground gun electrodes before making adjustments or cleaning the Electrostatic Powder Coating Paint Gun to ensure operator safety. Consistent maintenance of your Electrostatic Powder Coating Paint Gun ensures optimal performance and extends equipment lifespan for years of reliable service across all your coating projects.
